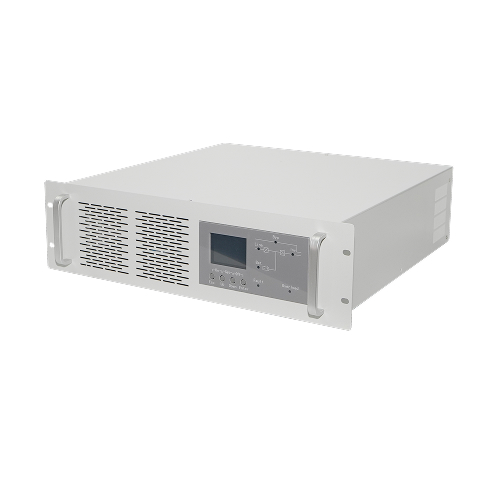

AT series intelligent inverters offer high efficiency, strong grid adaptability, high reliability, zero-delay transfer, and strong overload capacity. With RS-485 interface, fault dry contact output and LCD display. Applicable in power plant, substations, telecom, relay protection, emergency lighting and other area.

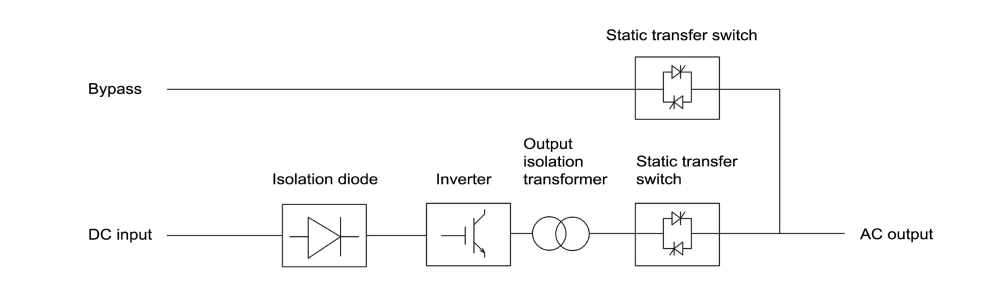

1)Two operating modes are available: Bypass Priority Mode and Inverter Priority Mode.

2)The battery or DC input is with a built-in Anti-backflow diode to protect both the battery and DC input power.

3)With protection against lightning, surge voltage, and electrostatic discharge (ESD).

4)With fault alarm and protection such as: by pass input over/undervoltage, inverter output over/under voltage, battery and DC input undervoltage, system fault, overload transfer, short circuit, and system over-temperature.
